Flaking mills

One Flaking mill Capacity from 5-500tpd

Grosper F Series Flaking Mills offer solutions with processing capacities ranging from 1 to 500 tons per day. Whether you are a startup or a large corporate client, our competitive prices and product configurations can meet your needs.

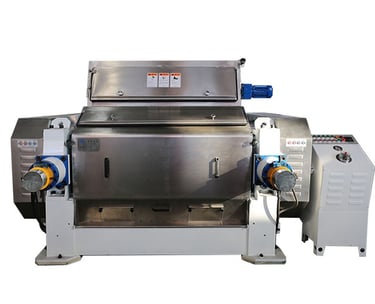

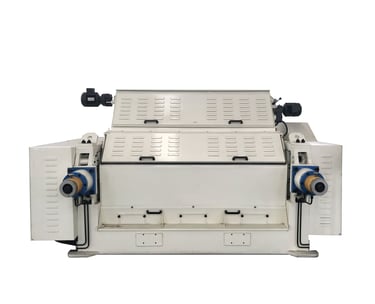

F8150H-300T
flaking mill

120-500tpd flaking mills

F8150-300T
flaking mill

F81125-200T
flaking mill

F8100-120T
flaking mill

Output:280-300T/24h

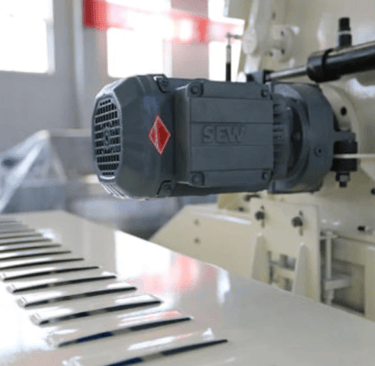

Double driven motor
Round Support System
Roller size :800*1500MM
China First Heavy Roll
Total power : 55kW*2+0.55kW+1.5kW
weight : 11.5T
one year warranty

Output:280-300T/24H
Double driven motor
Square Support System
Roller size :800*1500MM
China's First Heavy Roll
Total power: 55kW*2+0.55kW+1.5kW
weight 11.5T
one year warranty

Output : 180-200t/24h
Double driven motor
Round Support System
Roller size :800*1250mm
Select high nickel-chromium-molybdenum alloy rolls
Total power : 37kW*2+0.55kW+1.5kW
weight :9t
one year warranty

Output : 120-150t/24h
Double driven motor
Round Support System
Roller size : 800*1000mm
Select high nickel-chromium-molybdenum alloy rolls
Total power : 30kW*2+0.55kW+1.5kW
weight 7.5t
one year warranty

F6125-120T
flaking mill

F6100-100T
flaking mill

25-130tons flaking mills

FS6080-50T
flaking mill

FS4080-25T
flaking mill

Output:100-120T/24H
Double driven motor
Round Support System
Roller size :800*1500MM
China First Heavy Roll
Total power : 55kW*2+0.55kW+1.5kW
Weight 11.5T
one year warranty

Output : 50-80t/24h
Double driven motor
Round Support System
Roller size :600*800mm
Select high nickel-chromium-molybdenum alloy rolls
Total power : 18.5kW*2+0.55kW
Weight : 5t
one year warranty

Output : 25-30t/24h
Double driven motor
Round Support System
Roller size : 400*800mm
Select high nickel-chromium-molybdenum alloy rolls
Total power : 11kW*2+0.55kW
Weight :2.5t
One year warranty

Model indication：F=FLaking； dia of roller： 8=800mm； length of roller：150=1500mm；
single driven motor S=Single；high configuration H=High

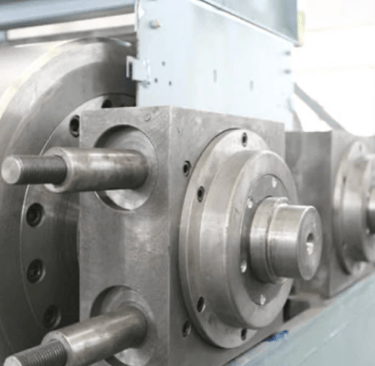

Basic configuration ：whole closed structure. Both side are with heat dissipation network. round bearing base .front and back door plate can be opend , easy to be cleaned .Both sides of bottom have material receiving port ,easy to observe the effect of material.

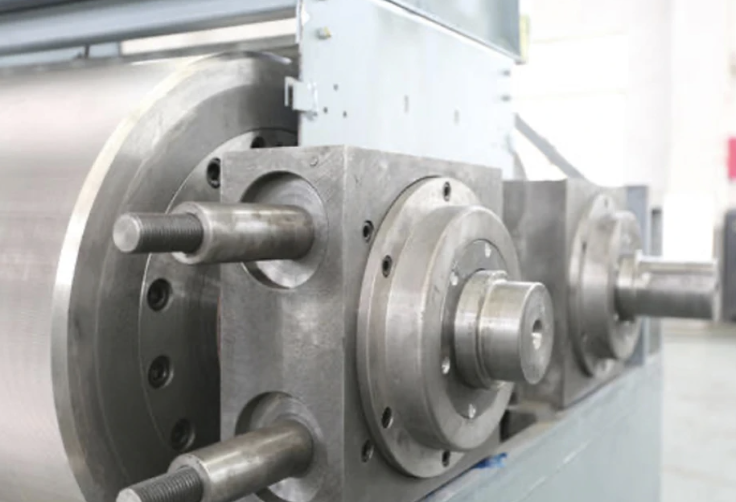

Roller：The high Ni Cr Mo alloy roll is poured by German centrifuge ,the hard layer is uniform. Rolls are dynamically balanced

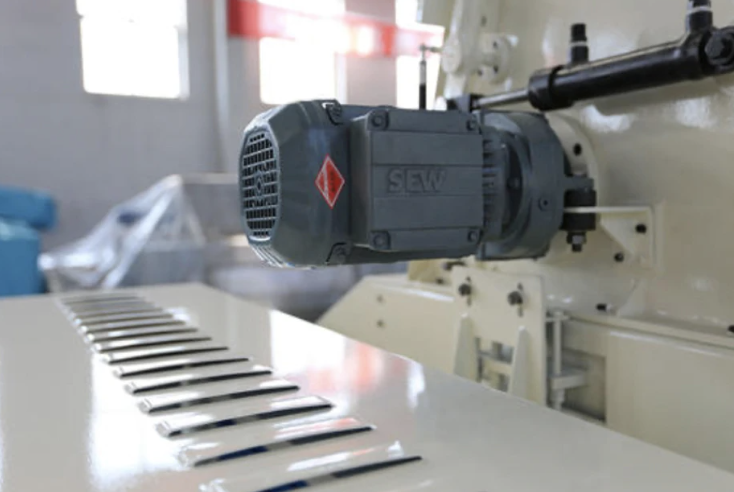

Pulley： The imported belt tightening process is adopted for the belt pulley

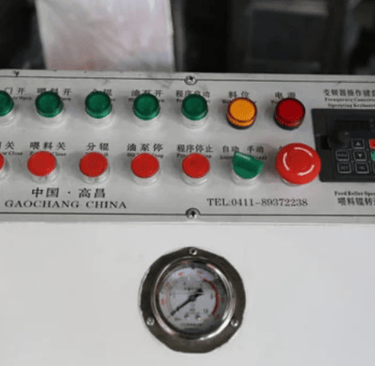

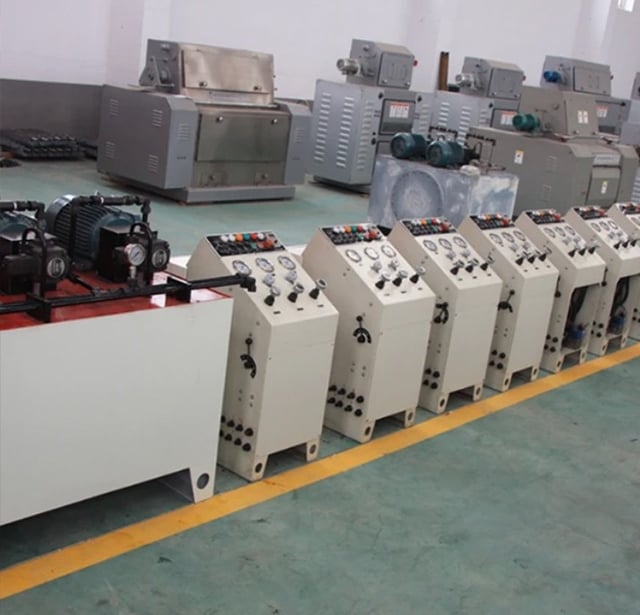

Hydraulic system ：the high-efficiency and energy-saving intermittent hydraulic pump station ensures the stable operation of the equipment.(The spring flaking mill does not includ this item)
Equipment base ：the base is welded steel ,which is quenched and tempered to eliminate internal stress and ensure that the base is not deformed
Leak proof device：leakage proof material by pinnacle baffle
Scraper system：Easy to clean up the materils attached to the roller .The blade can be removed and adjusted .
Tight-roll function:hydraulic tighten roller （suit for hydraulic flaker ）；spring tighten roller （suit for spring flaker ）

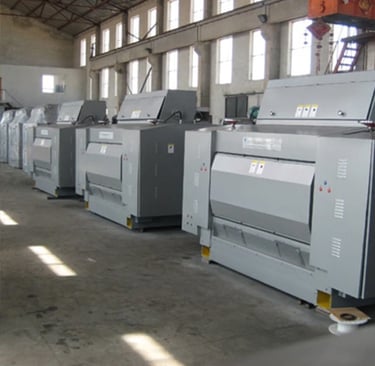

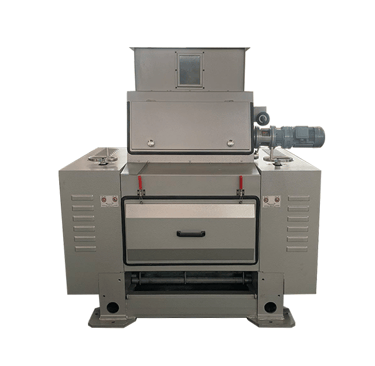

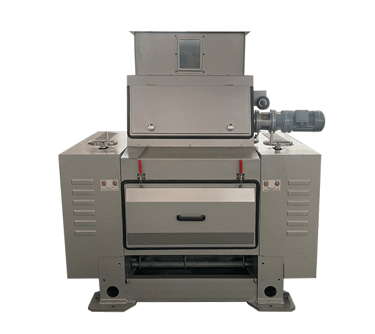

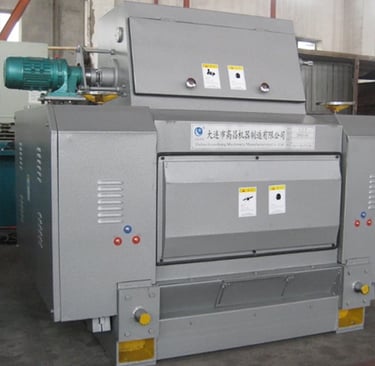

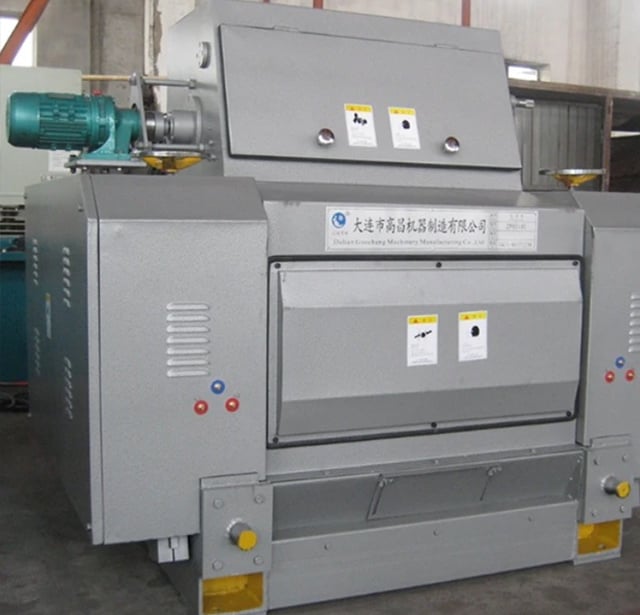

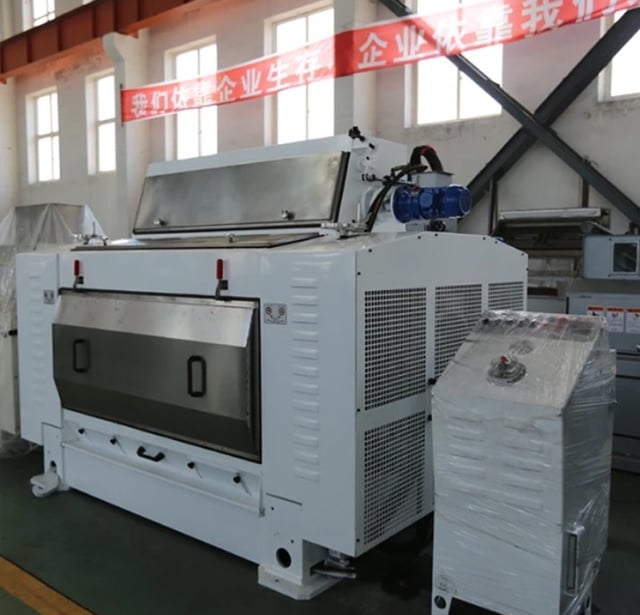

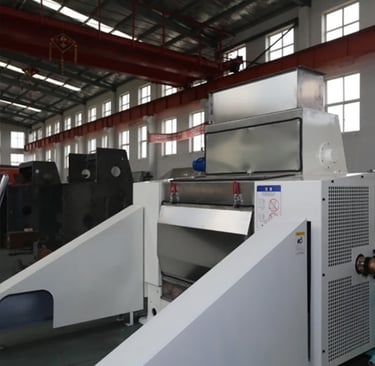

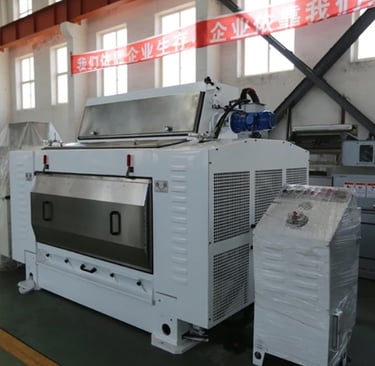

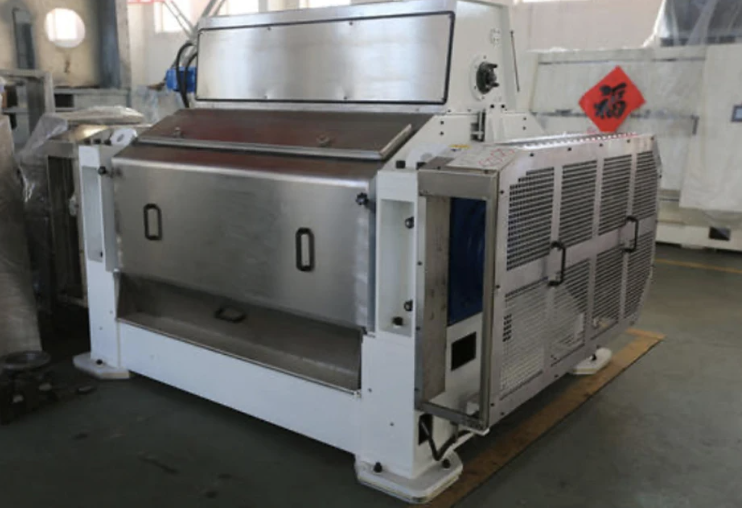

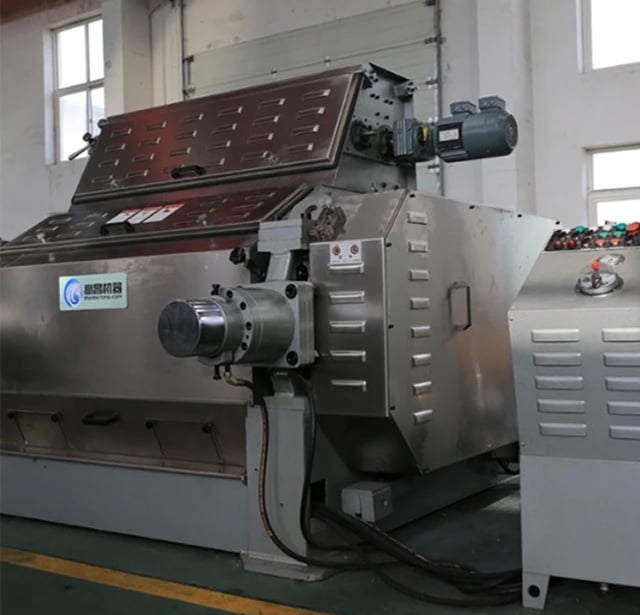

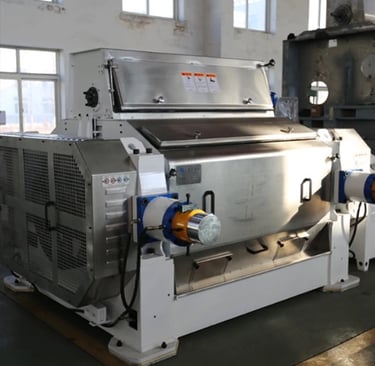

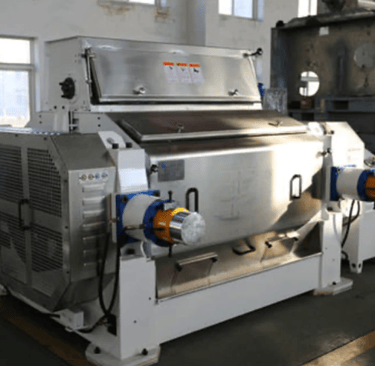

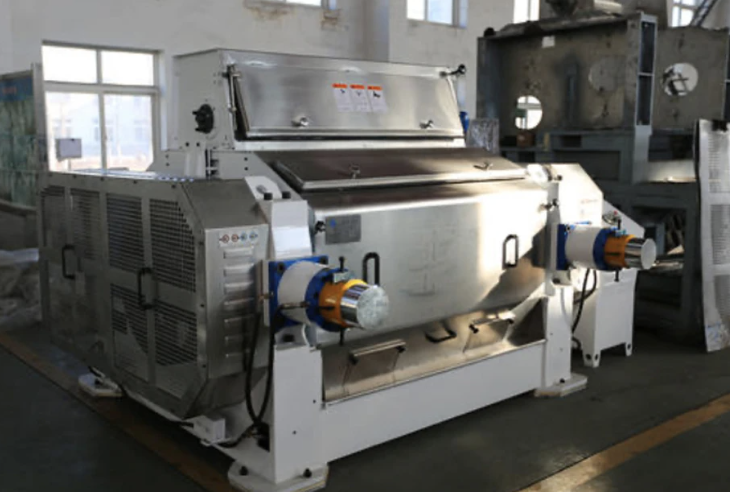

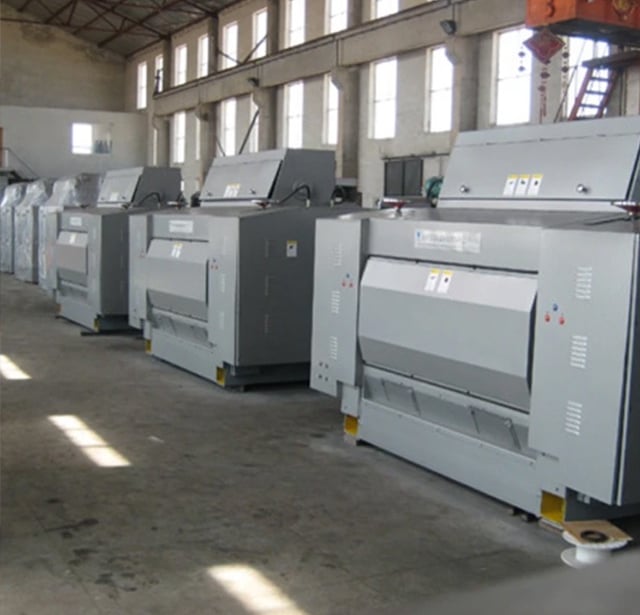

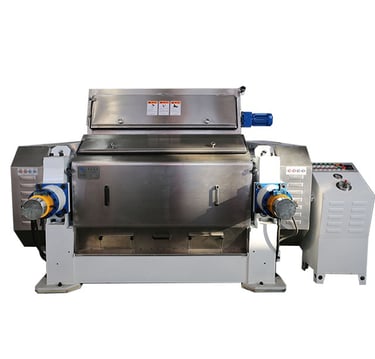

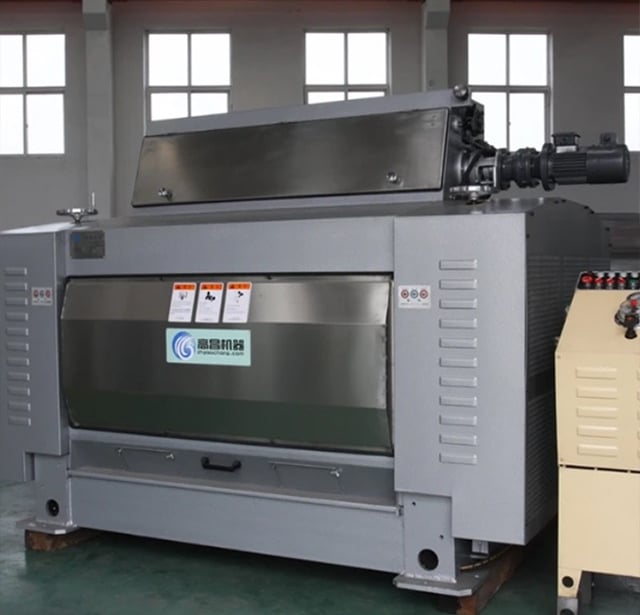

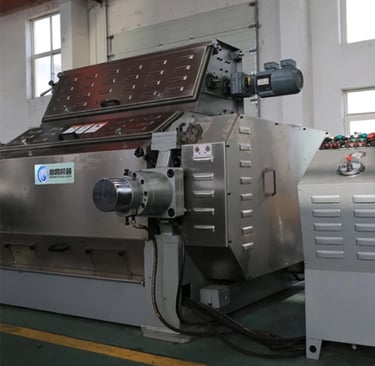

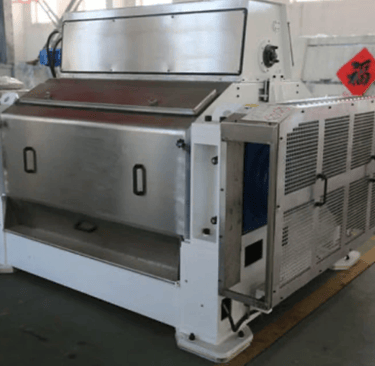

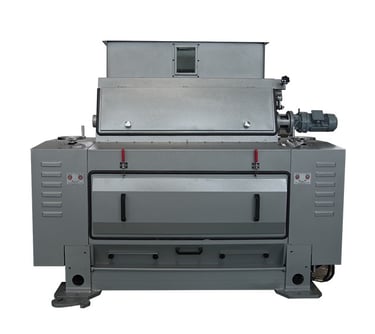

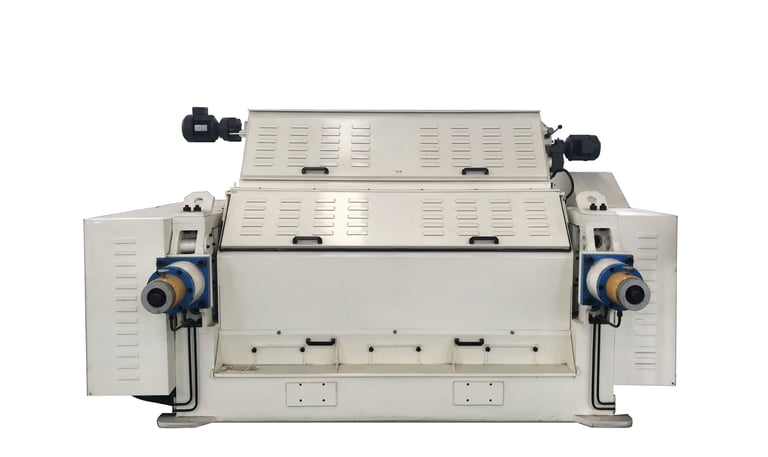

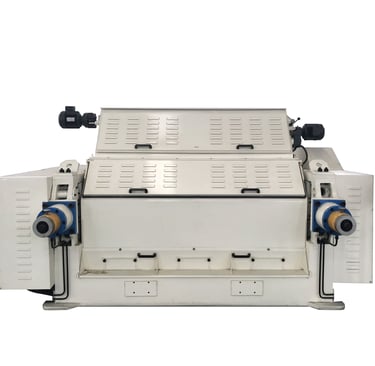

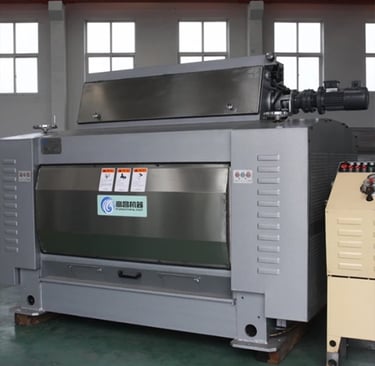

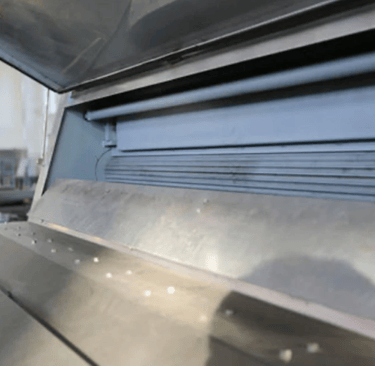

PICTURE OF FLAKING MILL
